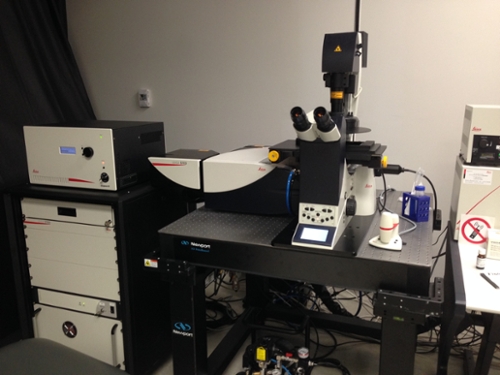

Leica TCS SP8 STED 3X

The Leica TCS SP8 STED 3X is a high sensitivity confocal microscope with complete flexibility and STED super resolution capability.

Features:

  • Inverted microscope
  • White light laser: up to eight excitation lines between 470-670 nm
  • 405 laser line
  • Five spectral detection channels: completely tunable bandwiths, 3 HyD detectors with photon counting and gating capabilities and 2 PMTs
  • Resonant scanner for high speed scanning
  • Okolab stage top environmental chamber for live cell imaging
  • Automated stage allows mark and find and montage images for large samples
  • Adaptive Focus Control – laser based autofocusing
  • Stimulated emission depletion super resolution with laser lines at 592, 660 and 775nm
  • Objectives:
    • 10x/0.4 dry     HCX PL APO CS
    • 20x/0.75 oil     HC PL APO CS2
    • 40x/1.1 water  HC PL APO CS2
    • 40x/1.3 oil        HC PL APO CS2
    • 63x/1.4 oil     HC PL APO CS2
    • 100x/1.4 oil     HC PL APO CS2
Leica TCS SP8 STED 3X
Leica TCS SP8 STED 3X
Leica TCS SP8 STED 3X

Leica TCS SP8 STED 3X

The Leica TCS SP8 STED 3X is a high sensitivity confocal microscope with complete flexibility and STED super resolution capability.

Features:

  • Inverted microscope
  • White light laser: up to eight excitation lines between 470-670 nm
  • 405 laser line
  • Five spectral detection channels: completely tunable bandwiths, 3 HyD detectors with photon counting and gating capabilities and 2 PMTs
  • Resonant scanner for high speed scanning
  • Okolab stage top environmental chamber for live cell imaging
  • Automated stage allows mark and find and montage images for large samples
  • Adaptive Focus Control – laser based autofocusing
  • Stimulated emission depletion super resolution with laser lines at 592, 660 and 775nm
  • Objectives:
    • 10x/0.4 dry     HCX PL APO CS
    • 20x/0.75 oil     HC PL APO CS2
    • 40x/1.1 water  HC PL APO CS2
    • 40x/1.3 oil        HC PL APO CS2
    • 63x/1.4 oil     HC PL APO CS2
    • 100x/1.4 oil     HC PL APO CS2
Leica TCS SP8 STED 3X

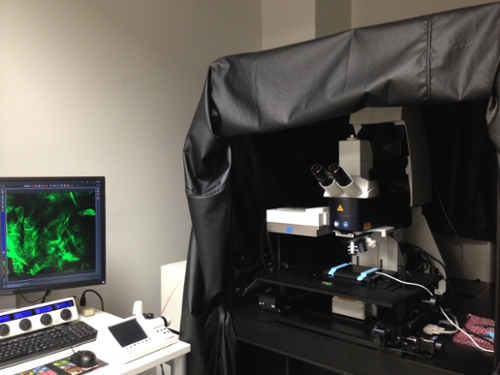

Leica TCS SP8 MP
​​​​​​​Leica TCS SP8 MP

Zeiss Lightsheet 7

The Zeiss Lightsheet 7 is a light sheet microscope for imaging of living and cleared samples.

Features:

  • 6 lasers: 405, 445, 488, 515, 561, 638
  • Emission filters: 445/50, 525/40,480/40, 545/40, 595/40, LP585, LP660
  • 2 PCO.edge 16bit cooled CMOS cameras
  • 5x and 10x illumination optics
  • 5x, 10x, and 20x detection optics for solutions with refractive indices from 1.33 to 1.58
  • Environmental control (temperature, CO2 and humidity)
  • Dedicated analysis workstation
Zeiss Lightsheet 7
Zeiss Lightsheet 7
Zeiss Lightsheet 7
